Raiden IP66 8KLM 830 Symmetric Wide
Raiden 8KLM
Product features

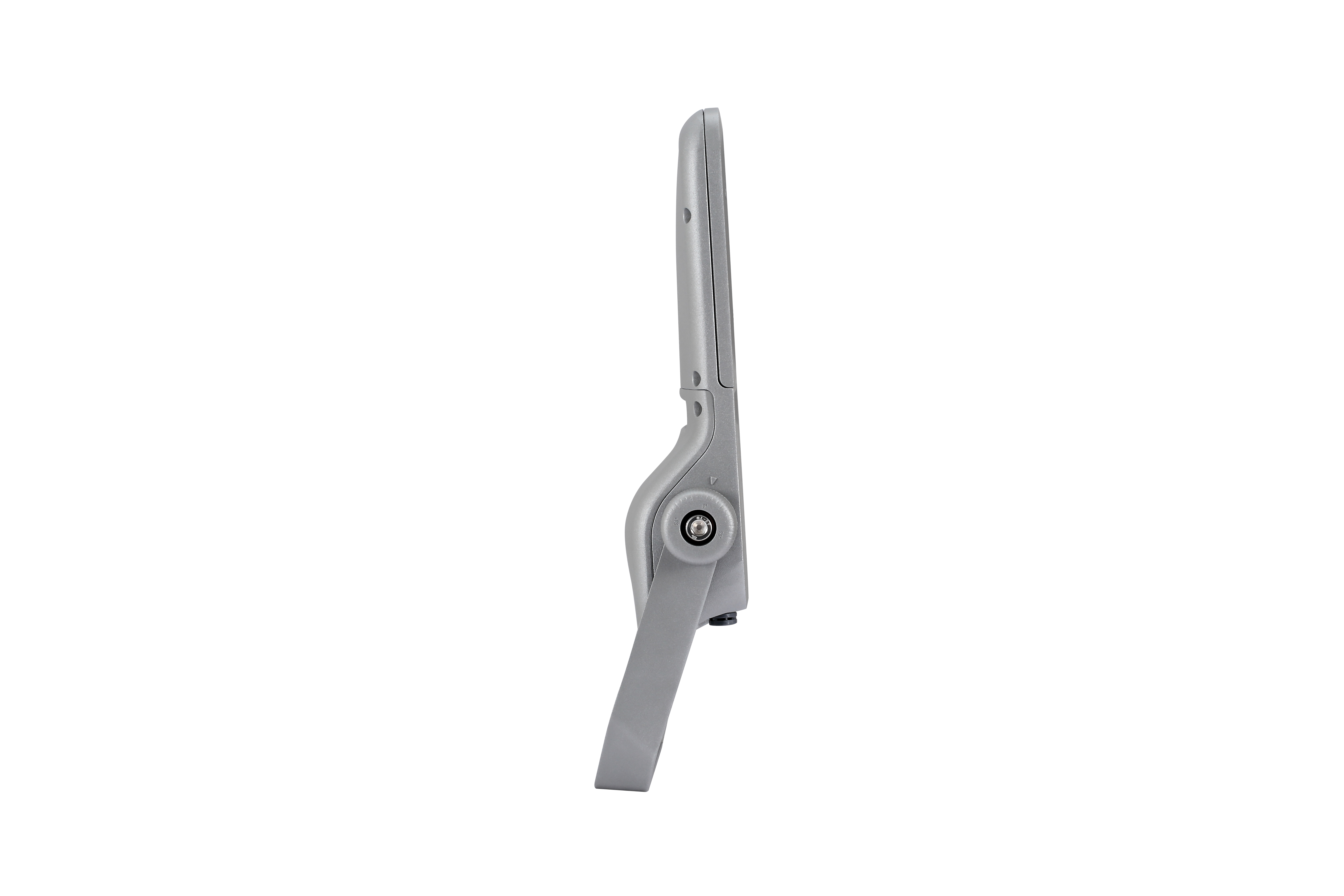

- Outdoor and indoor floodlight range with in house design, comes complete with 1m flying lead and adjustable bracket, aluminium housing, RAL 9022 - Pearl light grey, clear glass diffuser, IP66, IK08, Class I, 3000K, Non-dimming, 8500lm, 67W, 127lm/W, CRI80, Symmetric Wide beam angle 60°, 100000 hrs L90B50 lifespan, 327x270x74mm (LxWxH) dimensions, 4.2kg weight. Ball-impact-resistance according to DIN57710-13 VDE 0710 13/5.81, DIN 18032-3 only with the separate wire guard accessory fitted.
.png?maxheight=36){kind=icon}
Product overview
| Product overview | |
|---|---|
| Product name | Raiden IP66 8KLM 830 Symmetric Wide |
| Technology | LED |
| Cap/Base | N/A |
| Housing | Aluminium |
| General application | Logistics & Industry |
| ETIM Class | EC001744 |
| Fixture luminous flux (lm) | 8500 |
| Luminaire efficacy (lm/W) | 127 |
| Colour temperature (K) | 3000 |
| Light colour | Warm White |
| CRI (Ra) | 80 |
| Colour Variation Initial (SDCM) | SDCM3 |
| Beam Angle (°) | 60 |
| Photobiological Risk Group | RG1 |
| Total power consumption (W) | 67 |
| Electrical protection | Class I |
| Dimmable | No |
| Dimming method | N/A |
| Housing colour | RAL 9022 - Pearl light grey |
| IP rating | IP66 |
| IK rating | IK08 |
| Product EAN number | 5025768240043 |
| Warranty | 5 years |
Product Data
| General data | |
|---|---|
| Product name | Raiden IP66 8KLM 830 Symmetric Wide |
| Technology | LED |
| Cap/Base | N/A |
| Housing | Aluminium |
| General application | Logistics & Industry |
| Operating temperature range (°C) | -40°C...+50°C |
| Performance ambient temperature Tq (°C) | 25 |
| ETIM Class | EC001744 |
| Warranty | 5 years |
| Optical data | |
|---|---|
| Fixture luminous flux (lm) | 8500 |
| Luminaire efficacy (lm/W) | 127 |
| Colour temperature (K) | 3000 |
| Light colour | Warm White |
| CRI (Ra) | 80 |
| Colour Variation Initial (SDCM) | SDCM3 |
| Beam Angle (°) | 60 |
| Photobiological Risk Group | RG1 |
| Electrical data | |
|---|---|
| Total power consumption (W) | 67 |
| Lamp power factor | 0.95 |
| THD (at 230 V, 50 Hz, full load, at 100% dimming level) ≤ xx.x % | 20 |
| Electrical protection | Class I |
| Control gear required | No |
| Transformer required | No |
| Dimmable | No |
| Dimming method | N/A |
| Drive current (mA) | 1280 |
| Inrush Current (A) | 45 |
| Inrush Duration (µs) | 200 |
| Glow Wire Test (°C) | 850 |
| Energy Efficiency Class (A->G) of contained light source | D |
| Nominal Frequency (Hz) | 50/60Hz |
| Max. products per 10A C Breaker | 15 |
| Max. products per 13A C Breaker | 19 |
| Max. products per 16A C Breaker | 24 |
| Max. products per 20A C Breaker | 30 |
| Max. products per 10A B Breaker | 9 |
| Max. products per 13A B Breaker | 11 |
| Max. products per 16A B Breaker | 14 |
| Max. products per 20A B Breaker | 18 |
| Mains surge immunity (differential mode -> L-N) (kV) | 6 |
| Mains surge immunity (common mode -> L/N - GND) (kV) | 10 |
| Lifetime data | |
|---|---|
| Lifespan L70 B50 | 100000 |
| Lifespan L80 B20 | 100000 |
| Lifespan L90 B50 | 100000 |
| Physical data | |
|---|---|
| Housing colour | RAL 9022 - Pearl light grey |
| IP rating | IP66 |
| IK rating | IK08 |
| Nominal Product Length (mm) | 327 |
| Nominal Product Width (mm) | 270 |
| Nominal Product Height (mm) | 74 |
| Weight (kg) | 4.2 |
| Packaging | |
|---|---|
| Single packaging type | Carton |
| Product EAN number | 5025768240043 |
| Packaging single length / height (cm) | 39.5 |
| Packaging single width (cm) | 36.5 |
| Packaging single depth (cm) | 14.5 |
| DUN14 (outer) | 05025768240043 |
| Units per outer package | 1 |
| Packaging outer length / height (cm) | 39.5 |
| Packaging outer width (cm) | 36.5 |
| Packaging outer depth (cm) | 14.5 |
| Safety data | |
|---|---|
| Optimal operating condition (°C) | -40-50 |
